chinazisha@gmail.com Products Advantage
1.Green and environmental protection—— Burnt with 100% natural pure purple sand clay,safe and has radiation, available for direct recycle. 2.Elegant color——Its entire body is painted by the color of natural ceramic.With an elegant color, it’s beautiful and natural in appearance, while it can effectively resist ultraviolet rays. Thick texture——Endowed with natural texture of ceramic, it’s thick and pure, and will cause no light pollution.It can be used jointly with glass,metal and wood. 3.Robust and durable—— Burnt under high temperature of 1200 degree, it has a stable physical and chemical function.With a strict installation structure, it has a good vibration resistance and wind load resistance ability. 4.Convenient for installation——Replaceable for single board,and can be cut at will.Mature and advanced design, concise and appropriate structure, easy and convenient for installation. Fire resistance——The purple clay has a good fire resistance itself, and is more resistant to fire after burnt in high temperature. 5.Heat preservation and noise reduction——Hollowed inside,the ceramic plate can effectively block heat conduction and reduce external noise.
Product Parameter
|
Construction ceramic board technical parameter
|
|||
|
Function performance
|
EU EN1441 1 standard
|
||
|
18 ceramic board
|
30 ceramic board
|
||
|
Water absorption
|
3-6%
|
3-6%
|
Water absorption is divided into 3~6% and 6~10%
|
|
Dry weight
|
30kg/m2
|
42kg/m2
|
|
|
Cold resistance
|
No fracture after 100 cycles of freeze-thaw
|
No fracture after 100 cycles of freeze-thaw
|
Report detection value
|
|
Damage strength
|
2707N
|
6641N
|
>750N
|
|
Modulus of rupture
|
Average 18MPO Minimum17.5 MPa
|
Average31 MPa Minimum29MP。
|
Average＞9 MPa, Single value＞8MPa
|
|
Poisson’s ratio
|
0.33
|
0.33
|
|
|
Elastic modulus
|
20000 MPa
|
20000 MPa
|
|
|
Fire resistance
|
Al level
|
Al level
|
|
|
Acid and alkaline resistance
|
UA level
|
UA level
|
Report detection value
|
|
Radiation
|
Class A decoration materials
|
Class A decoration materials
|
|
|
Vibration resistance
|
Vibration resistance over 10 degree
|
Vibration resistance over 10 degree
|
|
|
Water test
|
Reach 10kPa without destruction
|
Reach lOkPa without destruction
|
|
|
Noise reduction
|
Reduce noise over 9dB
|
Reduce noise over 9dB
|
|
|
Heat conduction index
|
0.32w/m.k
|
0.32w/m.k
|
|
|
Thermal shock resistance
|
No burst or fracture
|
No burst or fracture
|
Report detection value
|
|
Pollution resistance
|
Level 2
|
Level 2
|
Lowest level 3
|
|
Impact resistance (recovery coefficient) test
|
0.78
|
0.78
|
Report detection value
|
|
Coefficient of linear thermal expansion
|
5.7×10一6
|
5.7x10P
|
Report detection value
|
|

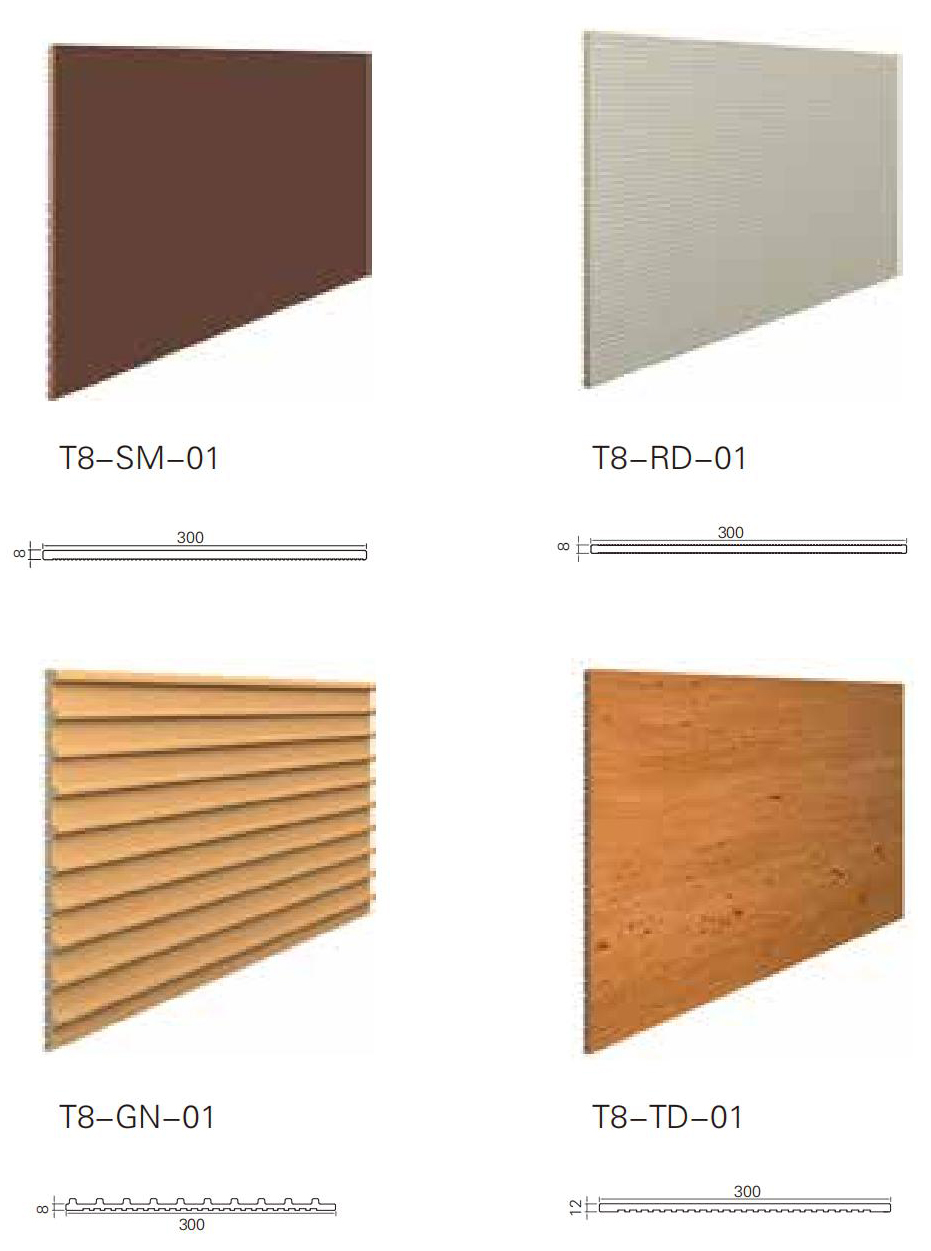

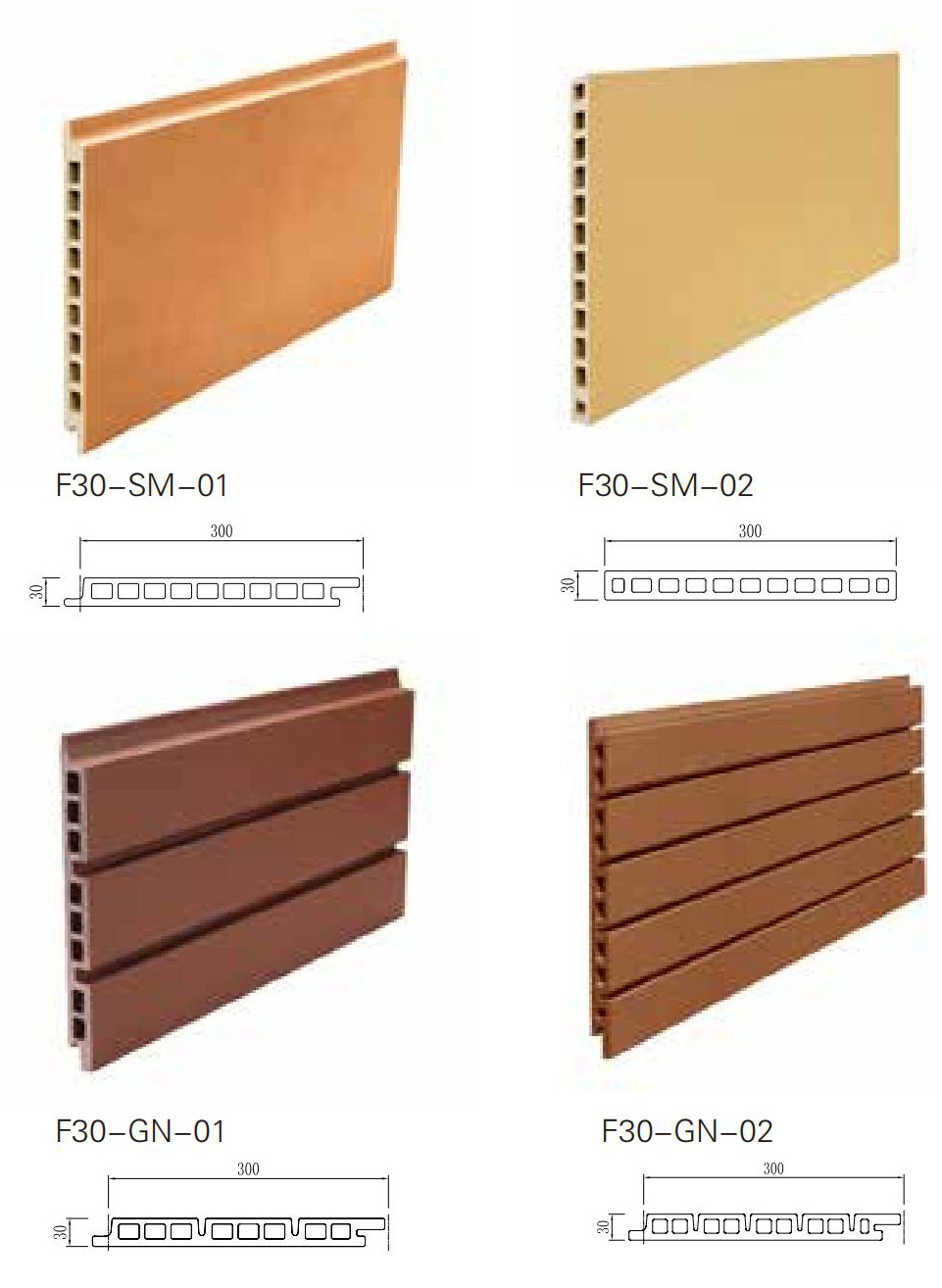

System
|
Thickness(mm)
|
Length(mm)
|
Width(mm)
|
Weigh
|
|
W18
|
18mm
|
600.900.1200.1500
|
300.350.400.450.500.550.600
|
≈32kg/m²
|
|
W20
|
20mm
|
600.900.1200.1500
|
300.350.400.450.500.550.600
|
≈35kg/m²
|
|
W30
|
30mm
|
600.900.1200.1600
|
400.450.500.550.600.650.800
|
≈45kg/m²
|
|
W40
|
40mm
|
900.1200.1500.1800
|
500.550.600.650.700.800.900
|
≈58kg/m²
|
|
W8
|
8mm
|
600.900.1200.1500
|
300.350.400.450.500.550.600
|
≈16.5kg/m²
|
