Products Advantage

1.Green and environmental protection—— Burnt with 100% natural pure purple sand clay,safe and has radiation, available for direct recycle.

2.Elegant color——Its entire body is painted by the color of natural ceramic.With an elegant color, it’s beautiful and natural in appearance, while it can effectively resist ultraviolet rays. Thick texture——Endowed with natural texture of ceramic, it’s thick and pure, and will cause no light pollution.It can be used jointly with glass,metal and wood.

3.Robust and durable—— Burnt under high temperature of 1200 degree, it has a stable physical and chemical function.With a strict installation structure, it has a good vibration resistance and wind load resistance ability.

4.Convenient for installation——Replaceable for single board,and can be cut at will.Mature and advanced design, concise and appropriate structure, easy and convenient for installation. Fire resistance——The purple clay has a good fire resistance itself, and is more resistant to fire after burnt in high temperature.

5.Heat preservation and noise reduction——Hollowed inside,the ceramic plate can effectively block heat conduction and reduce external noise.

Product Surface

The ceramic board has many surface effects to choose, which exhibit unique style of design. The ceramic board has dozens of surface effects,including natural surface, plot surface, sand surface,roughened surface,stria surface,slate surface,glaze,matte glaze, metal glaze, combined glaze,etc.Through combination of different products, it can create an impulsive visual effect.

Main installation procedures

1、Surveying and setting out Use theodolite and leveling instrument to mark the vertical and horizontal control line of keel installation on the external structure according to the elevation separation of curtain wall.

2、Pillar installation The pillar is fixed on the main body structure through corner connection. Stainless steel screw bolt fastening is adopted to adjust the vertical degree of pillar.

3、Install beam or connecting piece Screw bolt or nails are adopted to fix the beam(or connection piece) on the pillar, to adjust the vertical and horizontal degree of the beam.

4、Install ceramic board ⑴Install splicing tape on the beam(or pillar) ⑵Install ceramic board and pendant.Adjust the planeness and vertical degree of ceramic board installation through hitch;(3)Install the rest of      ceramic boards from bottom to top and finish the overall curtain wall installation

5、Apply pipe sealant An open system does not require pipe sealant, whereas close system is required to apply pipe sealant to the horizontal and vertical seam.

6、Curtain wall cleaning Clean up the installed ceramic curtain wall.

SPLICING scheme

Display

System	Thickness(mm)	Length(mm)	Width(mm)	Weigh
W18	18mm	600.900.1200.1500	300.350.400.450.500.550.600	≈32kg/m²
W20	20mm	600.900.1200.1500	300.350.400.450.500.550.600	≈35kg/m²
W30	30mm	600.900.1200.1600	400.450.500.550.600.650.800	≈45kg/m²
W40	40mm	900.1200.1500.1800	500.550.600.650.700.800.900	≈58kg/m²
W8	8mm	600.900.1200.1500	300.350.400.450.500.550.600	≈16.5kg/m²

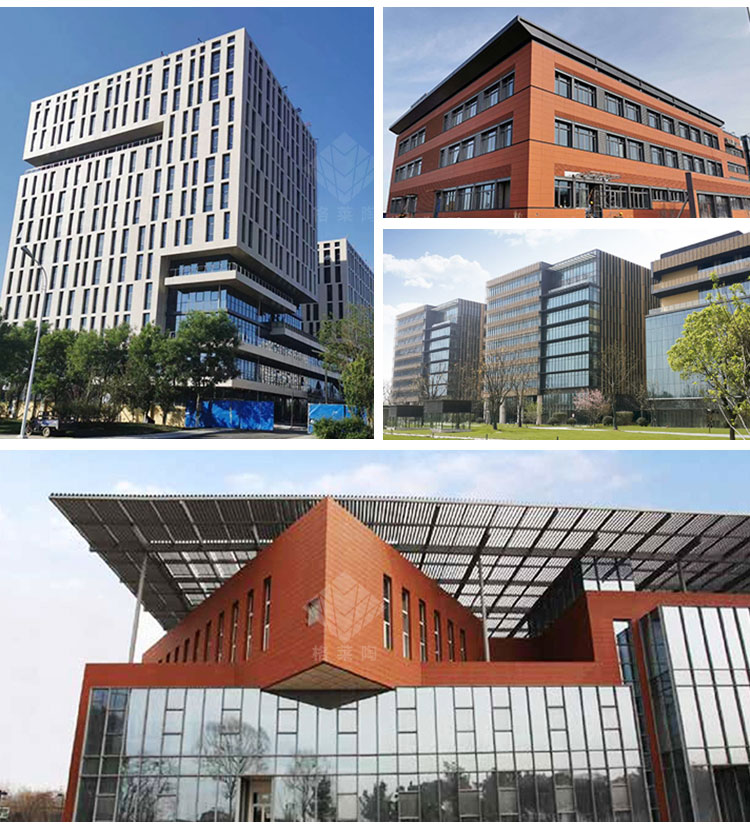

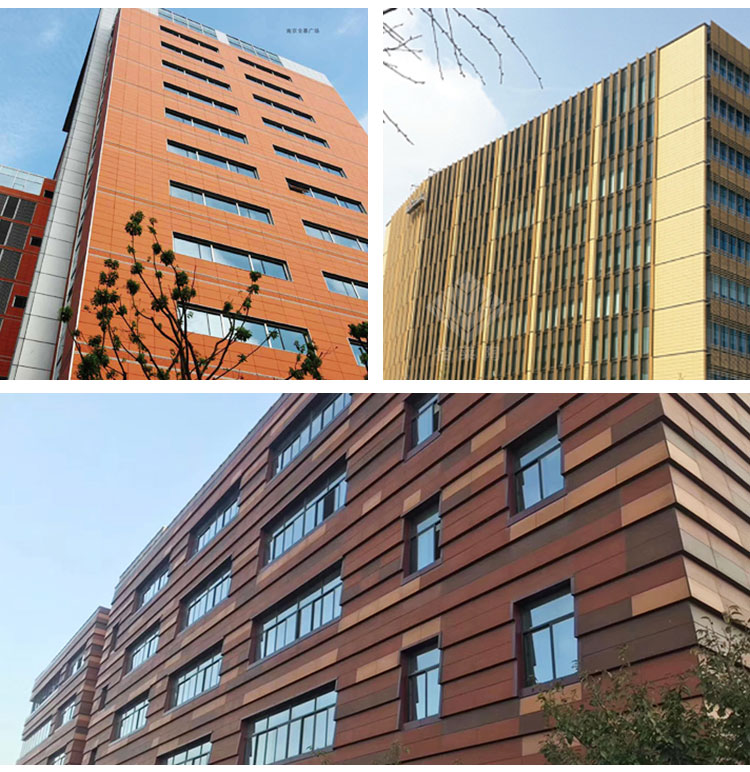

Project case

We have corresponding project cases in Japan, Europe and the United States and other countries for the reference of design and owner units. If you need more engineering cases, you can contact our customer service personnel
